B/R Instrument – Micro Fractional Distillation

Micro Distillation

This high efficiency, micro fractional distillation system is an ideal tool for automatically purifying or analyzing a wide range of materials where only very small amounts of sample are available. Common applications include:



  • Teaching Aid
  • Crude Oil Distillation
  • Petroleum Distillation
  • Close Boiling Point Separations
  • High Purity Fractional Distillation
  • Essential Oil Purification
  • Vacuum Distillation



Features:

  • All Glass and Teflon Components
  • 30 Theoretical Plate Distillation Column (maximum at atmosphere)
  • 10, 15, 25, 50, 100 ml boiling flasks
  • Automatic and Manually Operated Distillation Systems

This micro spinning band distillation system is a very powerful tool for separating close boiling components. Vacuum distillations can be carried out to as low as 0.1 mm Hg. Special glassware allows receivers to be changed without interrupting the vacuum regulation.

Specifications:

Column Length Diameter Plates Boiling Flask Sizes
800 Micro Spinning Band 20 cm 7 mm 30 (Teflon Band) 10, 15, 25, 50, and 100 ml



Automation and Accessories:

All our distillation equipment is available in fully automatic or manually operated models. Manually operated distillation systems are inexpensive and simple to operate. Automatic models are microprocessor controlled. All the distillation functions are fully automated to make the distillation process easy and efficient from beginning to end.

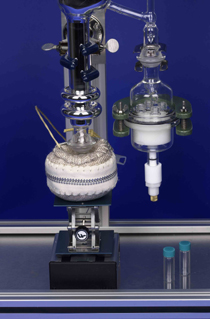

800 micro distillation 2

Automatic Controller (Optional PC Interface)

The automatic controller minimizes the amount of operator time required for each distillation. Select your stored distillation program and let the controller perform the distillation. Collect up to 8 fractions. Each fraction has programmable:

  • Open Temperature
  • Close Temperature
  • Heat Rate
  • Reflux Ratio
  • Programmable shut down at end of distillation

Each distillation program has a programmable

  • Vacuum level
  • Maximum Boiler temperature (safety feature)
  • Equilibration Time

The controller allows easy editing of parameters while the distillation is in progress. Or run the distillation from a PC.



VAC-1000 Vacuum Regulation System

Materials that have very high boiling points or are subject to thermal degradation should be distilled at reduced pressures. The VAC-1000 is a complete, stand alone vacuum system that can provide regulated vacuum to any distillation system. It features a 5 decade pressure sensor, proportional control valve, vacuum manifold/trap, 2 stage mechanical pump, all mounted on a roll around cart for easy maneuverability in the laboratory. The VAC-1000 can be used with automated or manually operated columns.



Fraction Collectors

Five place fraction collectors are available. Receiver sizes are 2 ml. The fraction collector is a convenient way to collect fractions without having to change receivers.



Mounting

The 800 micro still is mounted in an open frame support structure. The open frame allows easy access to all areas of the distillation column. The distillation column, microprocessor and fraction collectors are mounted in the framework.



Recirculating Baths

The distillation equipment requires cooling for the column condenser. Cold tap water can be easily attached to the column’s condenser. B/R offers heated and refrigerated recirculating baths for more precise control of the condenser temperature.
